Babcock Davis Rigid Grate GRATEdesign - Vinyl Abrasive Tread

GRATEdesign rigid entrance grilles are durable, yet versatile options for high traffic areas. GRATEdesign features I-beam reinforcement and sound absorbing cushions for years of reliable and silent operation.

Vinyl Abrasive inserts are made from a flexible abrasive that's bonded to a recycled plastic base. They're suitable for environments where excellent slip resistance is required.

GRATEdesign grates are compatible with the F-1, F-2C, F-2T, and F-LANG frames for either level bed or deep pit installation. GRATEdesign entrance flooring systems are covered by a two year warranty against manufacturing defects.

• Rail Material: Aluminum
• Depth: 1-3/4"
• Tread: Vinyl Abrasive
• Rail Finish: Mill, Clear, or Color Anodized (Medium Bronze)
• Frames: Level Bed (Cast-In, Mechanically Fastened) or Deep Pit (3 Inch Cast-In, 4 Inch Cast-In)
• Rolling Load Capacity: 1000 pounds per wheel
• Warranty: 2 years

Material Color Charts - Click to Enlarge

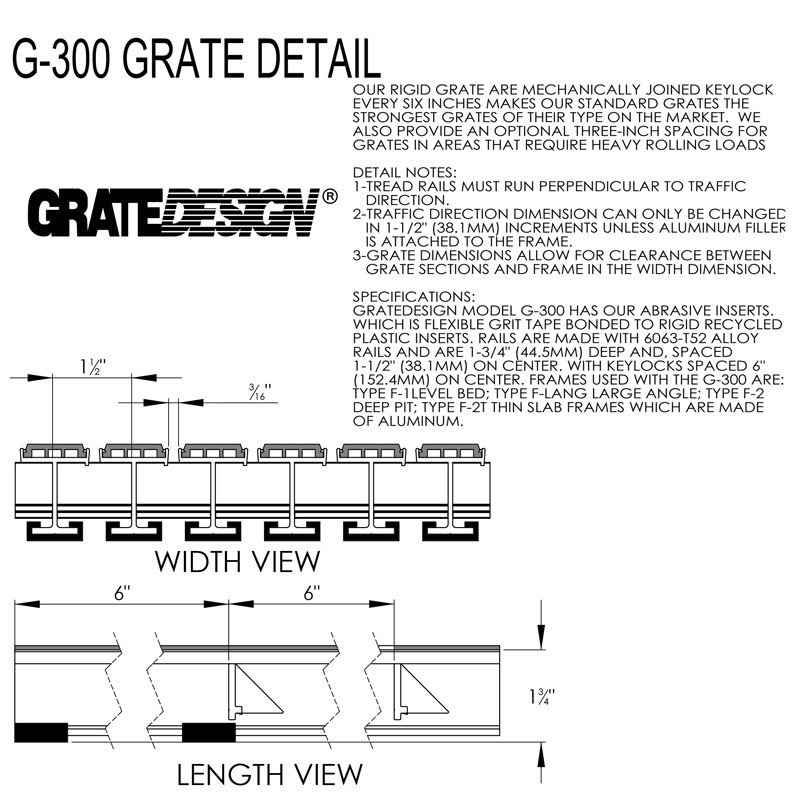

Frame Details - Click to Enlarge
