Overview
Bobrick Extra Heavy Duty Surface Mounted Towel Bar offers durability and ADA compliance for hotels, hospitals and more. Concealed mounting and snap flange easily install for added security.
- Towel bar: 18ga, type-304 heavy-gauge stainless steel tubing with satin finish

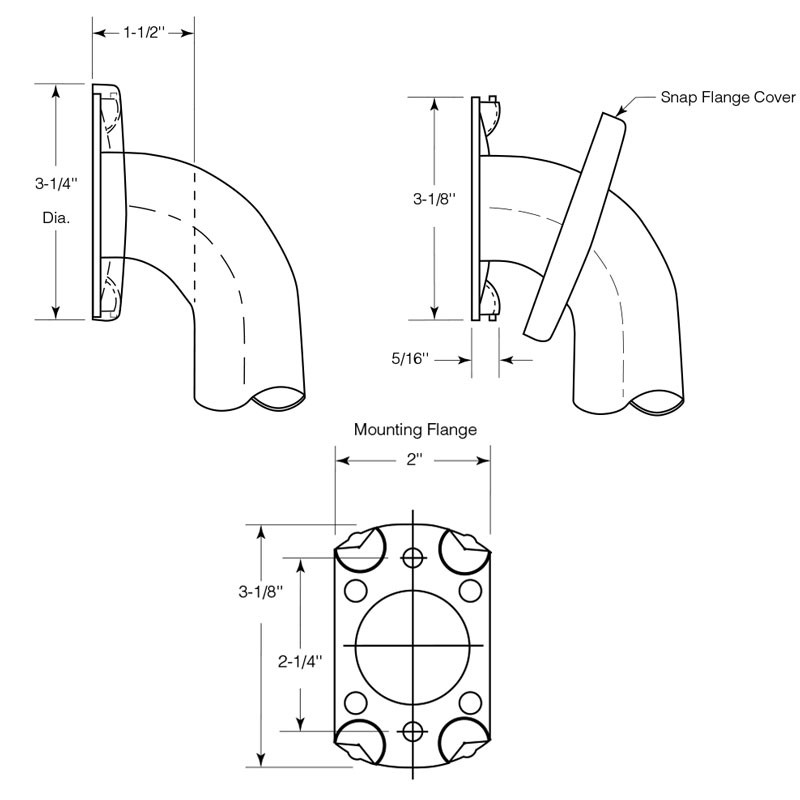

- Concealed mounting flanges: 11ga, type-304 thick, 2'' x 3-1/8'' stainless steel plate with holes
- Snap flange covers : 22ga, type-304 drawn stainless steel with bright polish finish
- 3-1/4'' diameter x 5/8'' deep
- Each cover snaps over mounting flange to conceal mounting screws
- Properly installed towel bar support loads in excess of 900 pounds
Submittal Data - Click to View PDF
