Bobrick Solid Phenolic Folding Shower Seat provides easy installation with space saving compact design for any home or commercial bathroom. Moisture resistant stainless steel frame supports up to 500lbs.

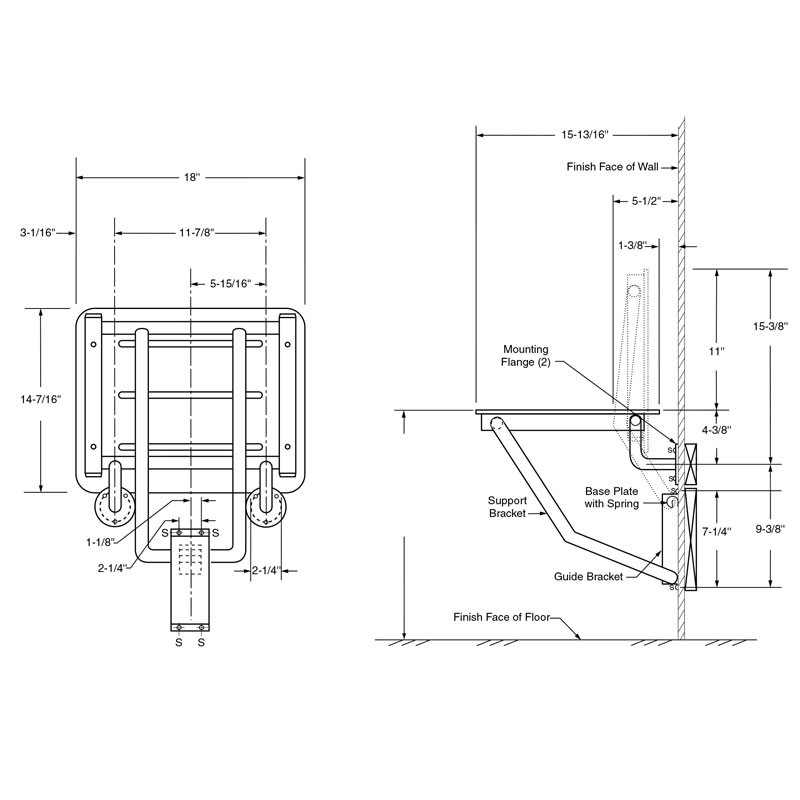

- Seat: one-piece, 5/16" thick, solidly fused plastic laminate with matte-finish melamine surfaces
- Frame: 16ga, type 304 stainless steel with satin finish and 1-1/4" square tubing
- Seamless 18ga tubing with 1" diameter
- Mounting Flanges (2): type 304 3/16” stainless steel with satin finish and 3" diameter
- Baseplate: type 304 heavy-gauge stainless steel
- Spring: 24ga, type 301 stainless steel with spot-welded to base plate
- Guide bracket: 16ga, type 304 stainless steel with satin finish
- Integral slots for water drainage
- Self-locking mechanism
- Supports up to 500lbs when properly installed
Submittal Data - Click to View PDF
