Product Information
Description
Von Duprin 33A/35A Series Concealed Vertical Rod Exit Device provides an emergency exit bar for single and double doors with narrow stiles. UL listed panic bar is ideal for hotels, schools and offices.
- For all types of double doors
- UL listed
- Fits stiles as narrow as 2 ⅛”
- 338 top strike and 385A bottom strike ship standard
- Deadlocking anti-friction ⅝” top and bottom latch bolt throw
- Hex key dogging comes standard
- Includes mounting hardware
Installation Instructions - Click to View PDF
Panic Bars, Exit Devices - How To
- Understanding Panic Bar and Exit Device Terms

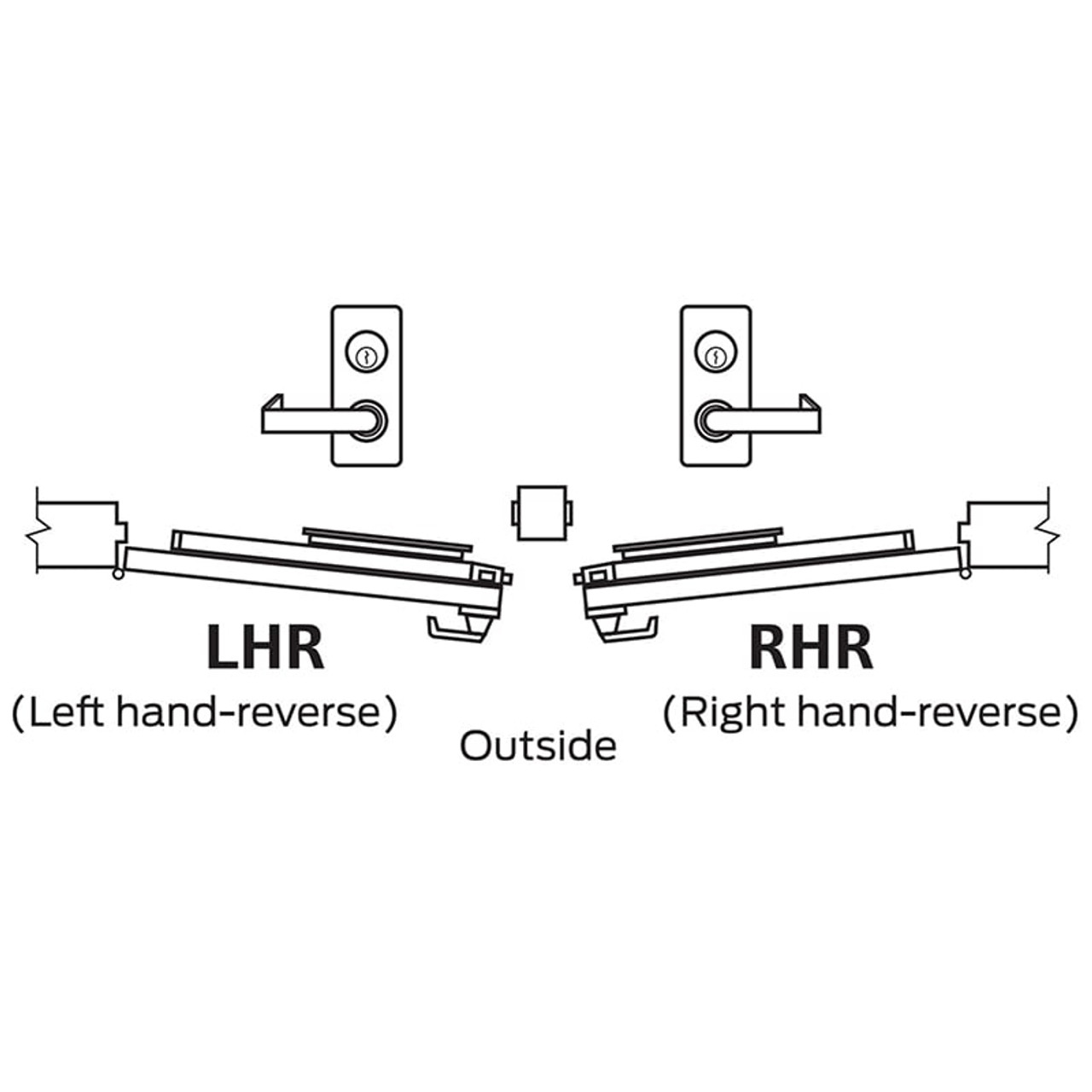

- Door Swing – Left Hand Or Right Hand?
- Choosing the Right Door Stop
- Single Cylinder Or Double Cylinder
